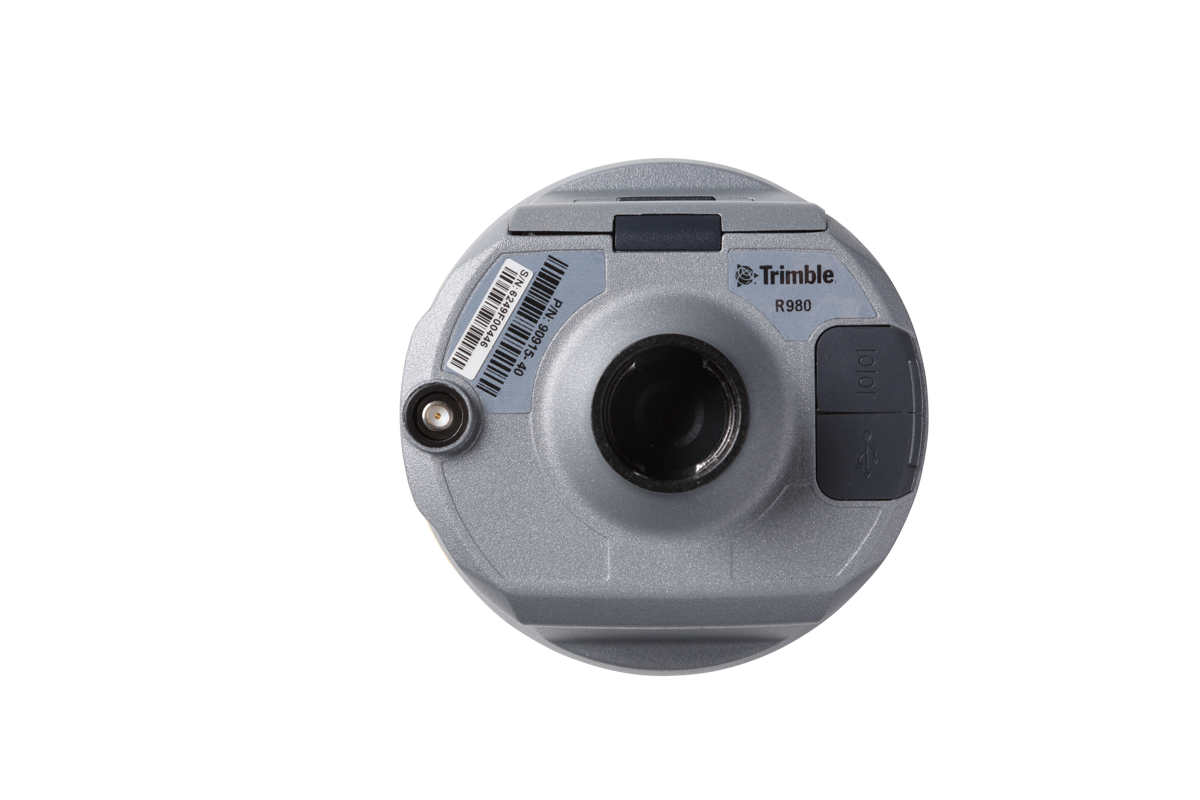

R980 GNSS System

The Trimble® R980 GNSS system delivers unparalleled accuracy and productivity for land surveyors with proven GNSS performance engineered to overcome challenging conditions. Featuring the advanced Trimble ProPoint® positioning engine, this premium receiver provides superior performance in demanding GNSS environments such as near trees, buildings, and other obstructions.

The R980 excels in remote locations with a comprehensive suite of connectivity options, including an integrated dual-band 450/900 MHz UHF radio and worldwide 4G LTE modem for seamless access to corrections. With robust IMU-based Trimble TIP™ tilt compensation, lightweight compact design, and military-spec rugged construction, the R980 is ready to work wherever the job leads you.

Key Features:

  • Trimble ProPoint GNSS Technology: superior performance and accuracy in challenging GNSS conditions
  • TIP Tilt Compensation: accurate measurements without calibration or leveling the pole
  • Comprehensive Connectivity: integrated dual-band 450/900 MHz UHF radio and 4G LTE modem
  • Military-Spec Design: rugged and lightweight (1.13 kg) for reliable operation in harsh conditions

  • Cadastral and boundary surveys in tree-lined and urban environments where property corners are often located
  • Rapidly capture terrain feature and elevation data for topographic surveys
  • Construction site surveys, staking, and layout operations
  • GIS data collection in challenging environments, such as near tree canopies or tall buildings
Specification Details
Real-Time Kinematic Precision 8 mm H / 15 mm V
TIP Positioning Performance RTK + 3 mm + 0.15 mm/° tilt
CenterPoint RTX 2 cm H / 3 cm V
Dual-Band UHF Radio 450 / 900 MHz
Cellular Modem 4G LTE
Weight & Dimensions 1.13 kg / 11.9 cm x 13.6 cm
