S5

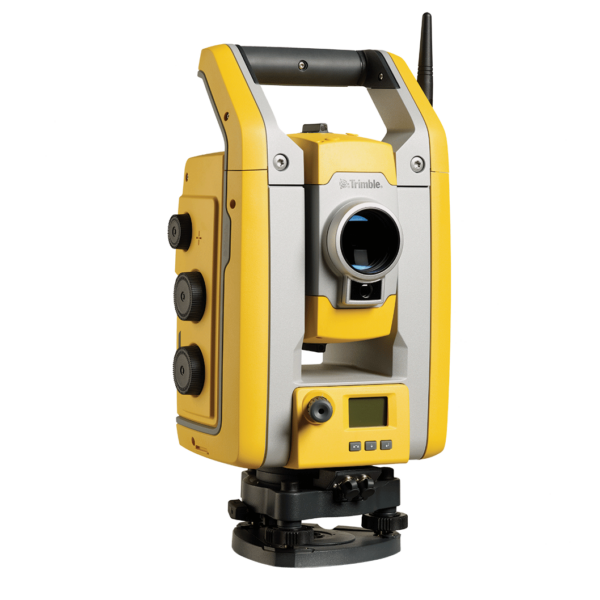

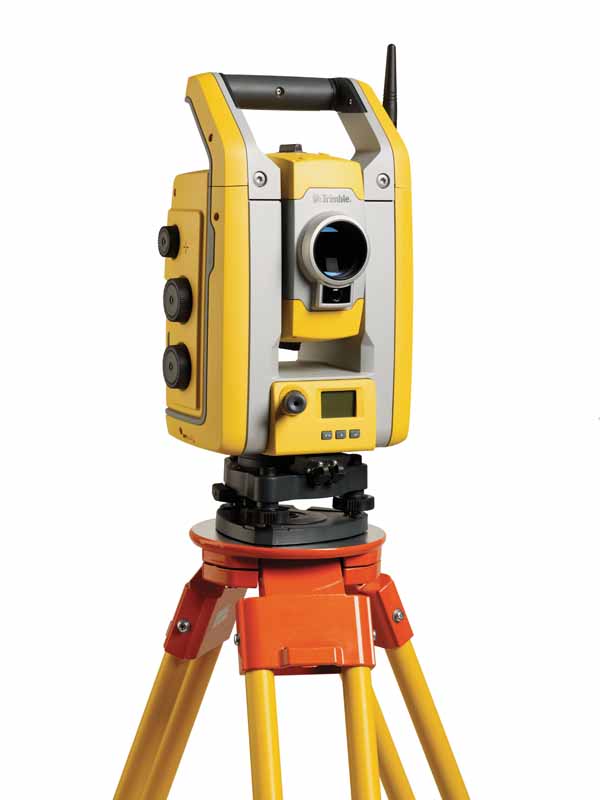

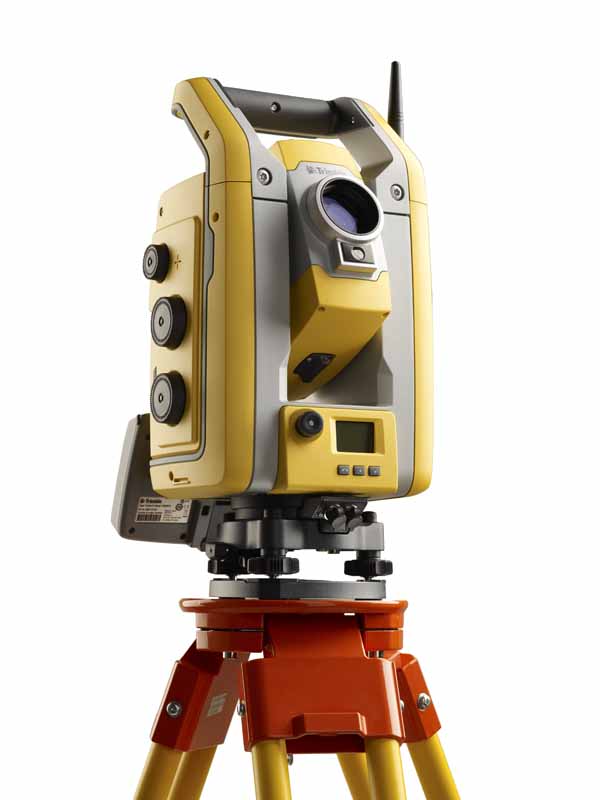

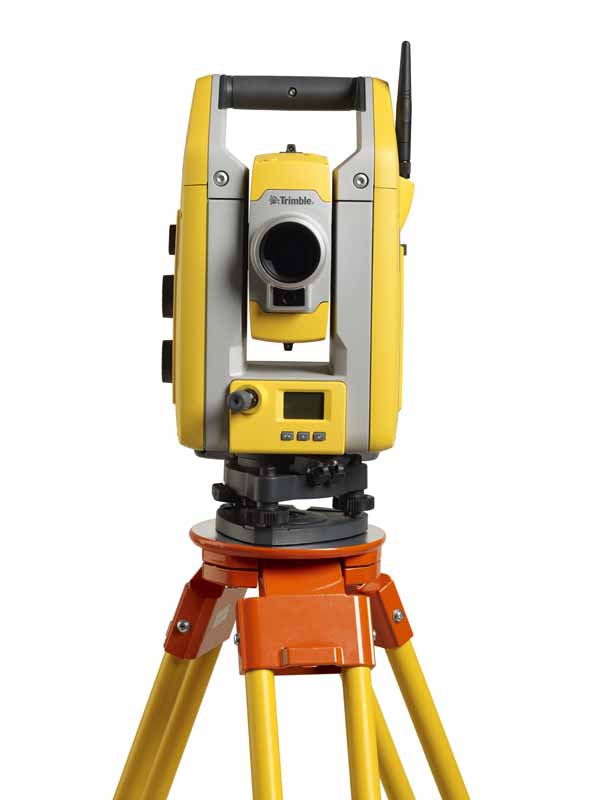

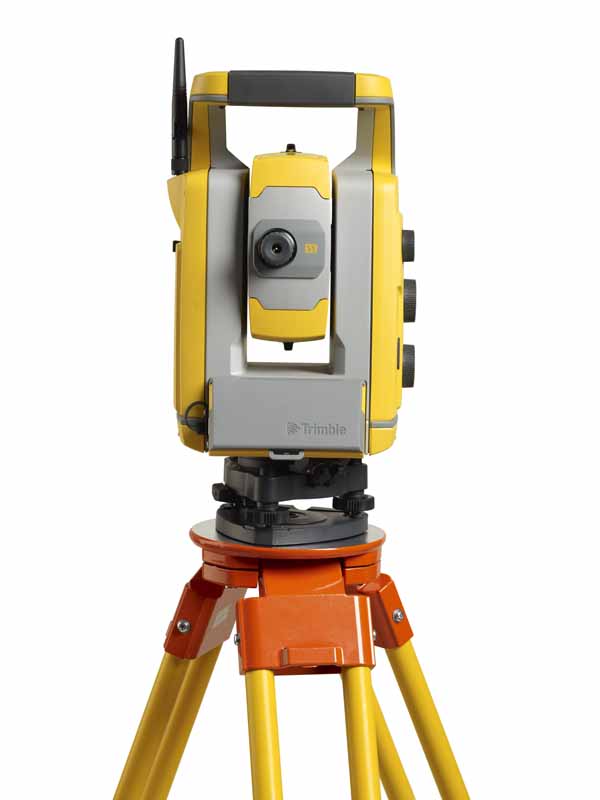

The Trimble S5 is a robotic total station designed to allow surveyors to operate remotely at any jobsite, enabling dynamic surveying workflows and reducing the need for multiple team members during data collection.

Built on proven Trimble technologies including MagDrive, SurePoint, and the DR Plus EDM, the S5 maintains high accuracy while delivering exceptional dependability.

Key Features:

  • Remote Operation for Solo Working: engineered for single-operator surveys
  • Trimble MagDrive Technology: smooth, precise movements with consistent accuracy
  • DR Plus EDM System: measure further and faster than conventional systems
  • Seamless Software Integration: efficient data capture, processing, and analysis

  • Single-operator survey campaigns requiring remote instrument control
  • Construction site surveys, staking, and layout operations
  • Infrastructure and utility mapping projects
  • Large-scale data capture projects leveraging the extended 5,500-meter range
  • Applications requiring both prism and reflectorless distance measurement capabilities
Specification Details
Angular Accuracy 1″, 2″, 3″, or 5″ (selectable based on project requirements)
EDM Technology DR PLUS (Distance Range Plus)
EDM Accuracy 1.0 mm + 2 ppm (Prism mode) / 2.0 mm + 2 ppm (DR reflectorless mode)
Maximum Range 5,500 meters
Standard Features AutoLock, MagDrive, SurePoint (all models)
Optional Features Tracklight, Active Tracking (model-dependent)
Radio Communication Integrated standard
Operation Type Remotely operable robotic total station
