S9

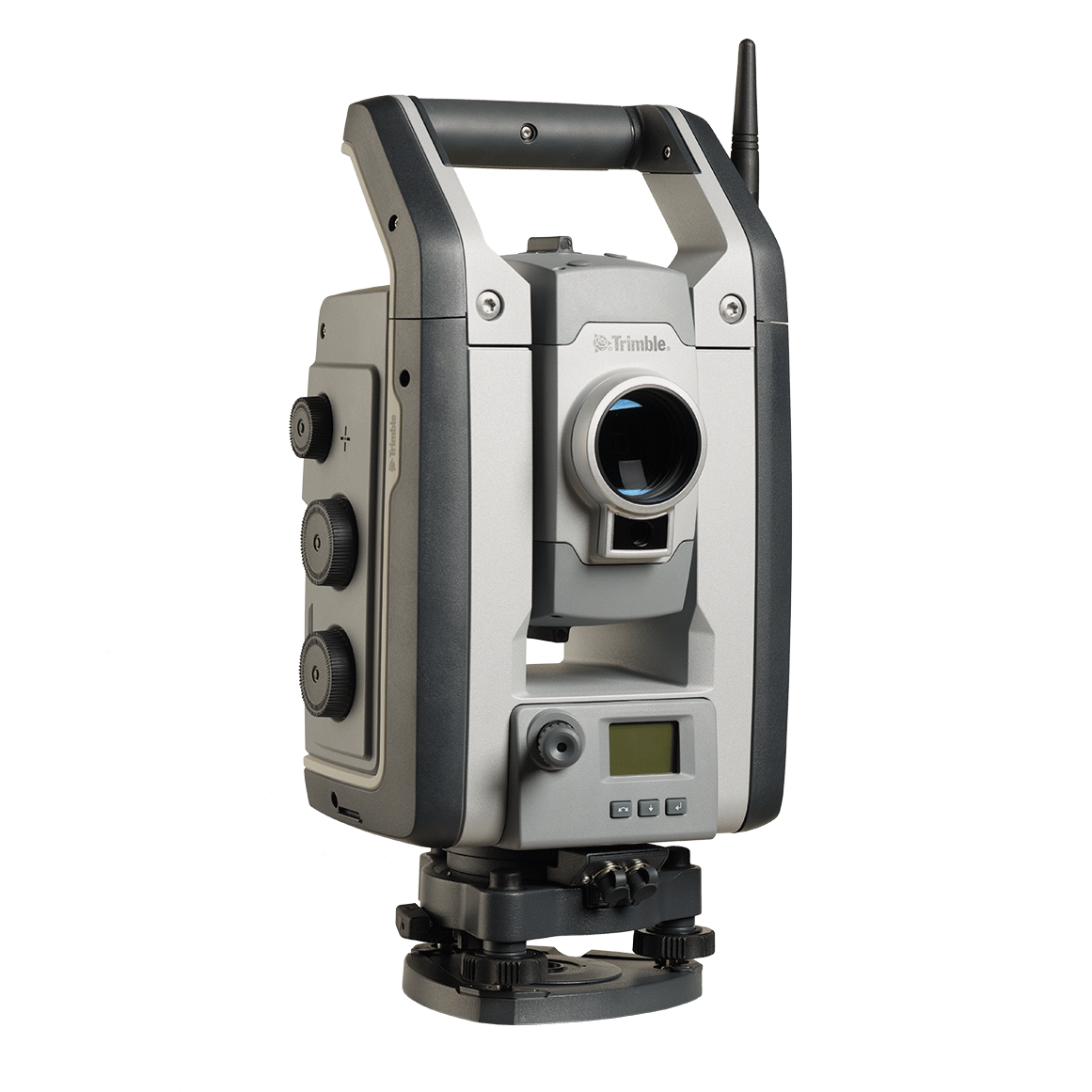

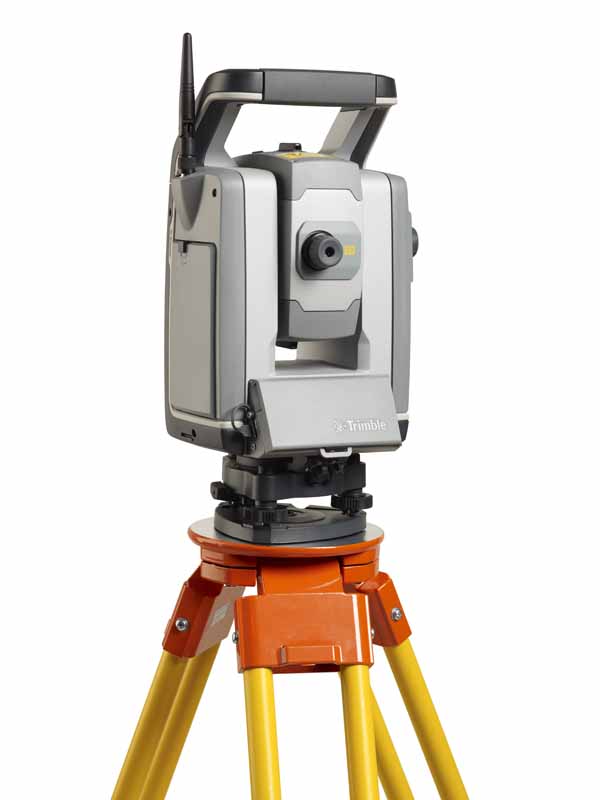

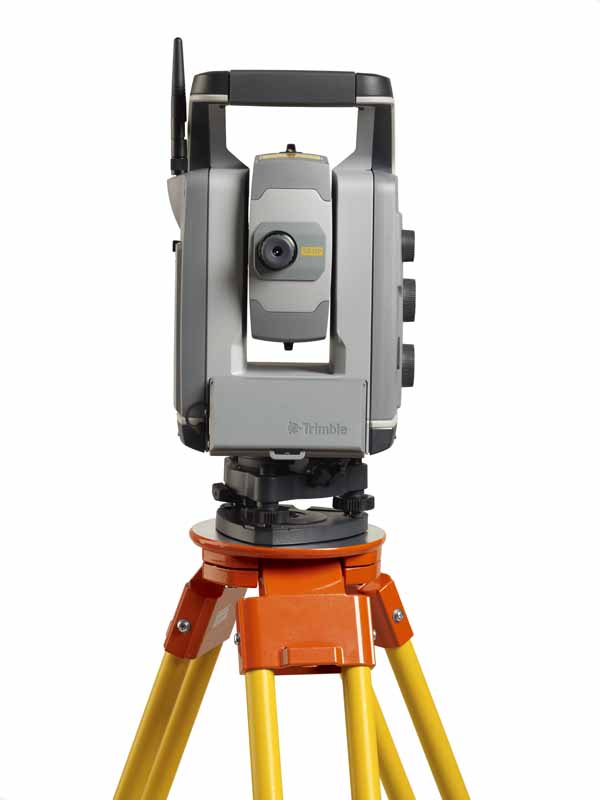

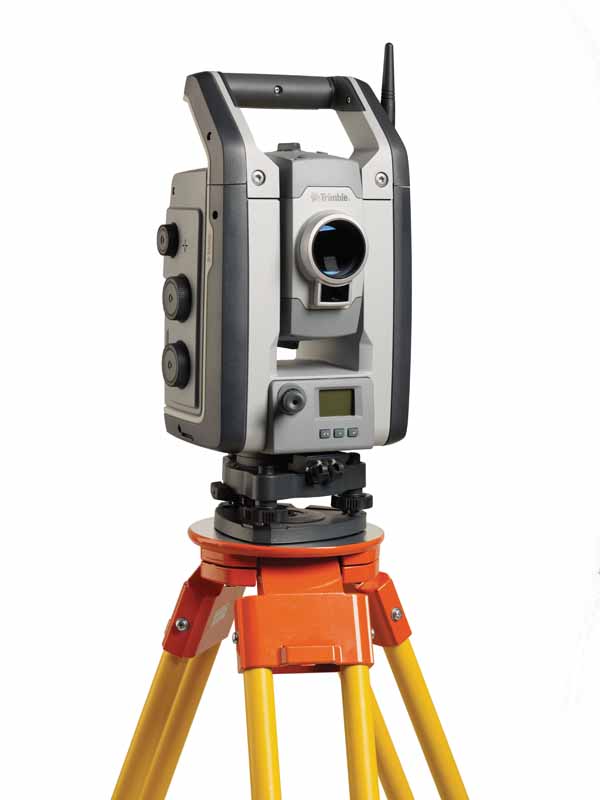

The Trimble S9 is a high-performance robotic total station engineered to tackle the most demanding surveying applications where extreme accuracy, speed, and reliability are essential. Combining advanced precision technology with robust construction, the S9 delivers confidence and efficiency on specialized projects including monitoring, rail, mining, and tunneling.

Key Features:

Customizable Tech Suite: choose technologies needed to match your project demands
FineLock & Long Range Tech: detects targets without interference and maintains lock over long distances
Field-to-Office Workflow: integrates with Trimble Access and Trimble Business Center for customizable workflows
Trimble VISION Integration: Live-stream video on your controller and tap-to-aim in Trimble Access

SKU: S9024201 Categories: Monitoring, Monitoring Total Stations, Robotic Total Stations, Total Stations Tags: Construction Connected Workflows, GIS, Mapping & GIS, Monitoring, Optical, Surveying, Transportation Brand: Trimble

Specialized monitoring projects requiring sub-millimeter precision, such as deformation analysis, structural monitoring, and dam monitoring
Rail and transportation planning and monitoring
Surveying and alignment for mining operations, tunneling, and underground construction
High-precision engineering surveys, where 0.5” angular accuracy is required

Specification	Details
Angular Accuracy	0.5″ or 1″
EDM Technology	DR PLUS
EDM Accuracy	1.0 mm + 2 ppm Prism / 2.0 mm + 2 ppm DR
Maximum Range	5,500 m
Technology (Standard on All Models)	Autolock, Magdrive, SurePoint, FineLock, Active Tracking
Model-Dependent Features	Long Range FineLock, Tracklight, VISION, SureScan
